TECHNICAL CARATHERISTICS OF THE LC 84 FRANGISOLE FOR OUTSIDE

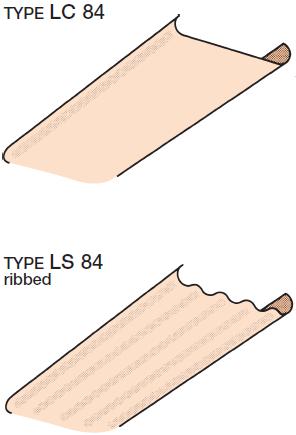

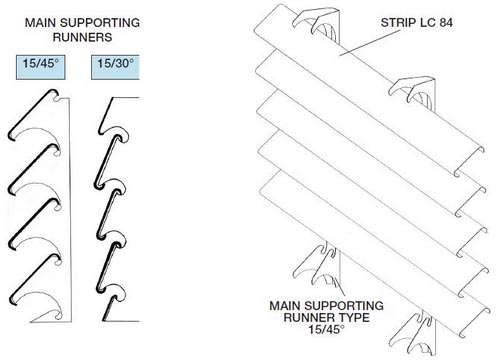

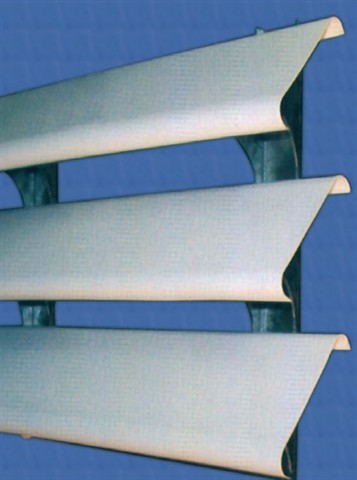

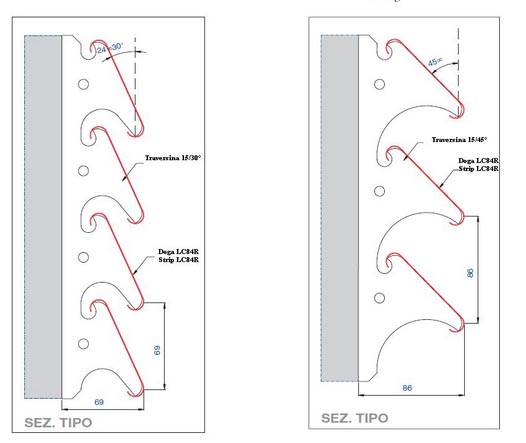

External cladding with linear strips mm.84 Type METALSCREEN "LC 84 FRANGISOLE” sun breaker to obtain a sun louver with inclination degrees 30° or 45° (the inclination 30° or 45° and colour choosed by the consultant). The strips are made of prepainted aluminium corrosionproof incombustible class “0” - Euroclass fire reaction A1 width mm.84 with round angles and thickness of mm.0,6. The Type METALSCREEN “LC 84 FRANGISOLE” sun breaker will be installed clip-on main supporting carriers installed each mm.600 between the carriers are made of prepainted aluminium thickness mm.1,00 and colour white on both sides.
TO OBTAIN MORE SOUND ABSORBITION AND NOISE PROTECTION, THE LINEAR STRIPS AVAILABLE MICROPERFORATED Ø mm. 2
