Type HD
Perimetrical wall angle "C" section prepainted aluminium mm.15x20xh18(linear stripes LC-LS-LT) length mm.3000
Type 02
Suspension thin roll galvanized steel for hangers with holes for any kind of hangers
Type FILO
Wire hanging rods galvanized steel
Type 100
Rigid suspension hanger galvanized steel(various length and corners final shes)
Type 23/D
Metal double snap for suspension on rigid hangers
Type FLEX.RA.22
Flexible perimetrical wall angle corner profile to be curved manually to connect with round columns walls
Type ADGR
Adapter spotlights for open cell ceilings systems prepainted aluminium (dimension hole or diameter upon customer request)
Type BCU
Metal snap spring for panel fastening
Type BR
Bandraster steel white / Silver matt (RAL 9006) length mm.4000
Accessories for panels
"Q6060" - "AKUTRON" concealed clip-in SIMPLE SYSTEM
Accessories for panels
"Q6060" - "AKUTRON" concealed clip-in DOUBLE SYSTEM
Suspension system
Assembled metal snap clip on "T" bar mm.24 to suspend concealed clip-in panels

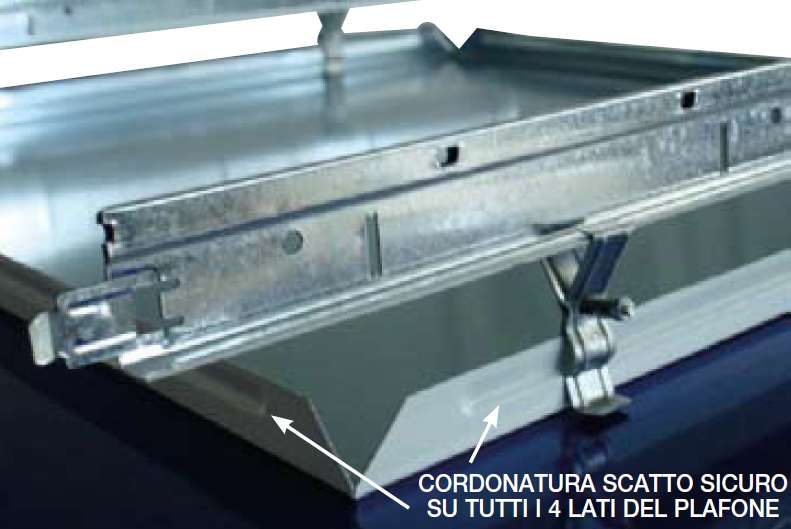

Installation "TWIN CLIP"
Suspension concealed system on main runner T mm.24xh38 mm.3600 with slots for hangers with metal snap adjustment type TWIN CLIP clip-in concealed panels systems mm.600x600
Type 63
Main supporting runner (linear stripes LC-LS-LT-LA) galvanized steel or prepainted steel black mm.0,6 length mm.4000
Type 63/150Z
Main supporting runner (linear stripes LA/150-LA/300) galvanized steel mm.0,6 length mm.4000
Type 62
Main flexible carrier (linear stripes LC-LS) prepainted steel black mm.0,6 length mm.4000
Type 43
Main supporting runner (linear stripes GR-LO) prepainted steel black mm.0,6 length mm.4000
Type 15/45°
Main supporting runner for LC FRANGISOLE 45° prepainted white aluminium 10/10 length mm.4000

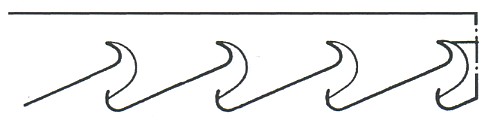

Type 15/30°
Main supporting runner for LC FRANGISOLE 30° prepainted white aluminium 10/10 length mm.4000

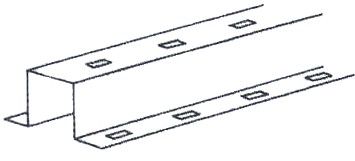

Type 01
Main supporting Omega runner strong renforced with rebated edges (linear stripes LA-RIV.) galvanized steel mm.0,6 length mm.4000
Type 46 / Type 48
Joint filler for closing gap (linear stripes LC-LS-GR) aluminium colour white/black length mm.3000
