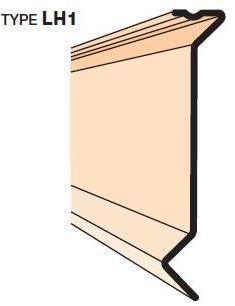

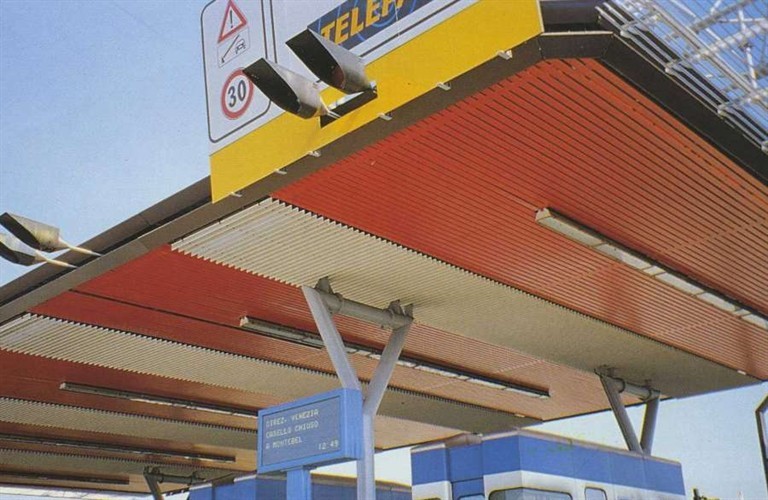

Using the vertical Type METALSCREEN LH1, suggested for large rooms, it point out the nicely and beautiful final result, with the comfortable diffusion light effect covering also all over the ceiling system: tubes, pipes, sprinklers, concealed control security videocameras.

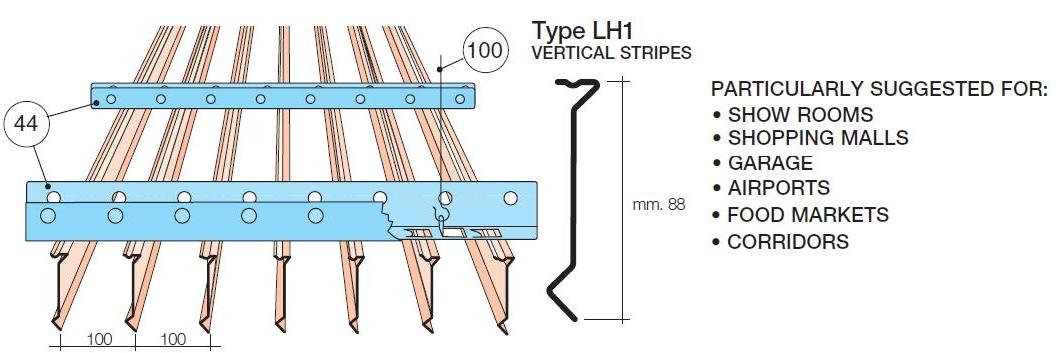

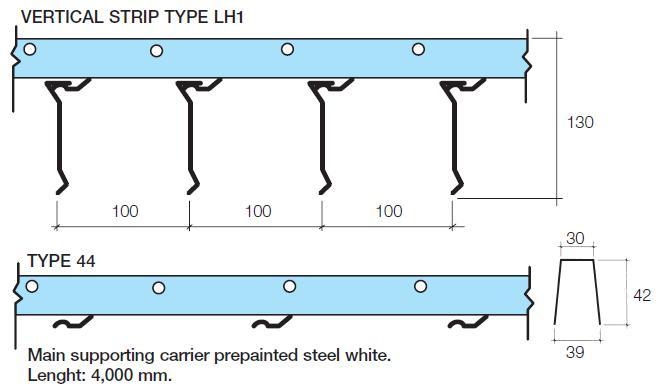

False ceilings system composed with vertical strips Type METALSCREEN LH1 height mm.88 pitch mm.100 (colour choosed by the consultant) aluminium prepainted thickness mm.0,6 painted one side. The Type METALSCREEN LH1 strips will be installed on supporting main carrier Art. 44 prepainted white steel thickness mm.0,6 and suspended with rigid steel galvanized hangers Art. 100 with metal snap suspension Art. 23/D. To obtain the best soundproofing result the LH1 strips must be perforated with holes diameter Ø mm.3 or Ø mm.2 on the total surface with acoustical “TNT” non vowen textile thermal applied on the back of each strip.
