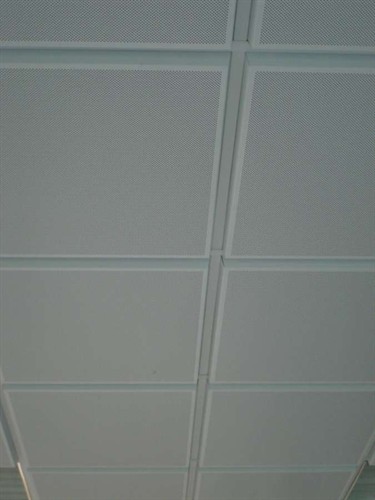

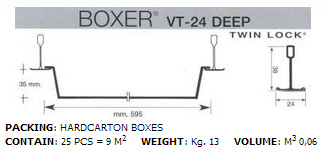

Type METALSCREEN "BOXER VT-24 DEEP” mm.0,5-0,6-0,7 thickness, prepainted aluminium ceiling recessed panels dimension mm.595x595xH35 with oblique edges and height mm.35 (the colour and the exact thickness will be chosen by the site consultants). The Type METALSCREEN“BOXER VT-24 DEEP” panel individually demountable and the panels will be mounted lay-in visible “T” bar grid structure “TWIN LOCK” mm.600x600 modular structure is composed of hot dipped galvanized steel “T” bar profiles with prepainted aluminium corrosionproof capping mm.24xH38 for each component inclusive the cross tees. The perimetrical finishes will be made using a prepainted galvanized steel frames Art. RA “L” section profile mm.24x24. To increase soundproofing and noise control, the Type METALSCREEN “BOXER VT-24 DEEP” panels will be supplied with Ø mm.3 perforations or, alternatively, Ø mm.2 micro-perforation with total or central surface (as required by the site management). Each panel must be supplied with acoustic “TNT” non woven textile soundproofing fabric thermal applied on the back of each panel.
AVAILABLE ALSO IN PREPAINTED THERMOSETTING STEEL THICKNESS mm. 0,5
"TNT" ACOUSTICAL NON WAVEN TEXTILE
"TNT" is a new microfibre with non-vitreous fabric warping which METALSCREEN applies to the back of every single panel and strip in the ceiling panelling system using a computerised apparatus with a thermal monitoring function. "TNT" has extremely powerful noise absorption properties, does not release noxioius fibres into the air and does not alter or decompose over time. "TNT" is supplied already affixed to the panel, preventing additional installation, carriage and storage costs which usually apply to the supply of insulating materials. METALSCREEN ceiling panelling with "TNT" and its thermal adhesive backing guarantee the presence of an insulating material even after inspections, maintenance and repositioning of each individual panel in the ceiling panelling.
