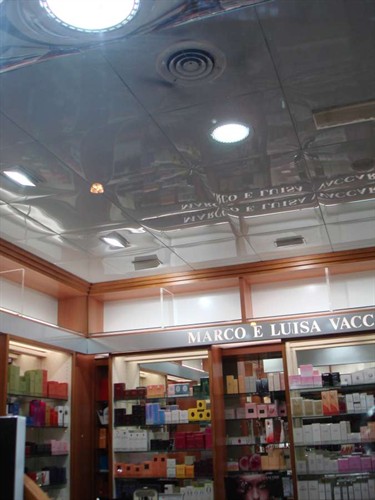

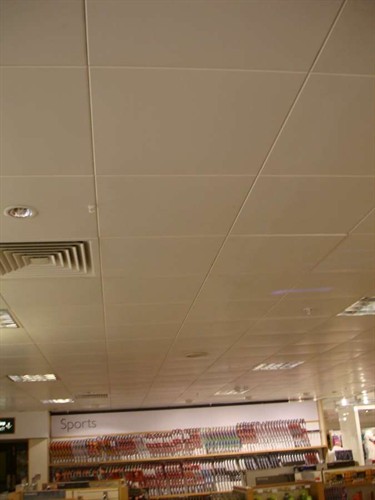

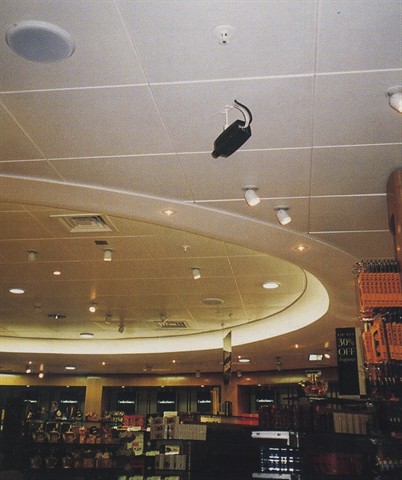

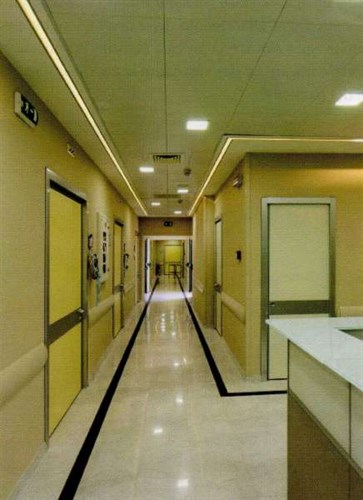

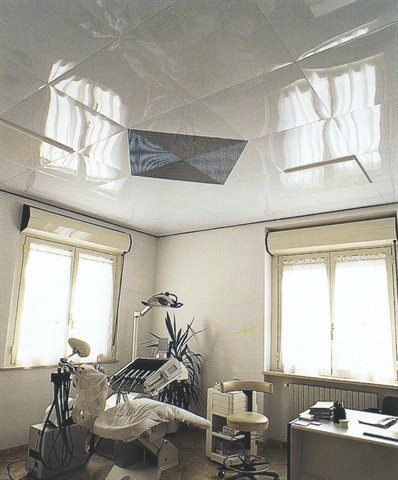

False suspended ceilings system composed of prepainted aluminium corrosionproof and washable Type METALSCREEN “Q6060 CLIP-IN” concealed with bevelled closed joints, mm.600x600 thickness mm.0,5-0,6-0,7, microperforated diagonal holes Ø mm.2 - Ø mm.3 total surface, with mm.25 plain renforced surface all around the border’s panel or central surface mm.400x400 with mm.100 plain renforced surface all around the border’s panel (the colour, the thickness and the perforations will be choose by the consultants). Its complete of acoustic “TNT” textile non woven black fabric thermal applied on the back of each panel. The Type METALSCREEN “Q6060 CLIP-IN” panels, must be installed on “DOUBLE CONCEALED SUSPENSION SYSTEM” composed of: primary supporting runner Art. U2 hot dipped galvanized steel thickness mm.0,6 across with the galvanized hot dipped spring tee renforced runner Art. 08 to clip the Type METALSCREEN “Q6060 CLIP-IN” panel with a simple soft pressure and metal union snaps Art. 35 to obtain a perfect shadow joint gap. The “DOUBLE CONCEALED SUSPENSION SYSTEM” its composed without use other kind of parts without screws, bracket or make holes. It is only suspended with hanging rigid wire Ø mm.4 Art. 100 with metal adjustment double snap Art. 23/D, perimetrical wall angles “L” section Art. RA mm.24x24 with connector joint prepainted aluminium of same colour of the Type METALSCREEN“Q6060 CLIP-IN” panels.
AVAILABLE ALSO IN PREPAINTED THERMOSETTING STEEL THICKNESS mm. 0,5
"TNT" ACOUSTICAL NON WAVEN TEXTILE
"TNT" is a new microfibre with non-vitreous fabric warping which METALSCREEN applies to the back of every single panel and strip in the ceiling panelling system using a computerised apparatus with a thermal monitoring function. "TNT" has extremely powerful noise absorption properties, does not release noxioius fibres into the air and does not alter or decompose over time. "TNT" is supplied already affixed to the panel, preventing additional installation, carriage and storage costs which usually apply to the supply of insulating materials. METALSCREEN ceiling panelling with "TNT" and its thermal adhesive backing guarantee the presence of an insulating material even after inspections, maintenance and repositioning of each individual panel in the ceiling panelling.
The panels mm.600x600 clip-in concealed system are suspended from a metal adjustment snap Type "TWIN CLIP" clip on the main supporting runner fireproof T section mm.24xH38x3600 with aluminium prepainted capping corrosioproof complete of punching slots for suspension hangers each mm.600.
The "TWIN CLIP" concealed suspension system warrant the perfect and quick installation alternatives of the old very difficult system of the steel pipes.
