Giacoklima® GK is a radiant modular false ceiling system with metallic surface covering particularly suitable for heating and cooling of offices, hospitals, airports, commercial rooms, schools and service sector buildings in general.
The system is composed of active and inactive steel sheet panels, steel sheet carrying elements and a suspension system by means of rigid hangers that allow to obtain perfect flatness and horizontality of the false ceiling. Two types of activation (A and C) enable to satisfy different thermal output requirements.
Easy and rapid to install, giacoklima® radiant false ceiling can be opened any time to have free access to the systems placed in the plenum and make maintenance operations.
The availability of the micropunched panels is particularly useful to exploit the plenum for the delivery of the renewal dehumidified air or to improve the room acoustics thanks to the high sound-absorbing power. An apposite thermo acoustic panel made of polyester fibre, can be placed on the upper part of the panels when thermal insulation upwards or an increase of the acoustic performance are needed.
The GK system is characterized by 150 mm wide steel sheet carrying elements and it allows the realisation of a false ceiling in two different modules:
Safety springs can be unhooked and GK panel rotated by means of hooks fixed in buttonholes of carrying elements to open the false ceiling.
It is possible to easily integrate components of other systems that have to turned in room –for example lights or air diff users – due to inactive panels having an apposite preblanking, without making boring or breaking.
The GK PSV system is characterized by steel sheet carrying elements T-shaped base 24 mm and it allows the realisation of a false ceiling in two different modules:
GK PSV panel can be raised and positioned vertically, by remaining hanged to two metallic cables, to open the false ceiling.
The standard module offers the advantage of easily integrating components of other systems that have to be turned in room – for example lights or air diff users – without cutting panels, making boring or breaking.

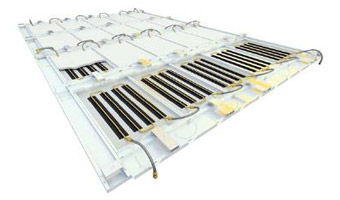

GK60 series permits making a 600x1200mm modular false ceiling with parallel structure at sight. Steel sheet panels are available in plain and micropunched versions.
The connection in series of the panels among them and to the delivery and return manifolds is made by straight or angle push fittings and plastic pipe.
Each panel has two hooks fixed in their apposite buttonholes of the carrying elements, around which the panel can rotate. Two safety springs keep the panel on seat and permit the opening and the closing. The panel can therefore be unhooked, rotated by 90° and positioned vertically to open the false ceiling and reach the plenum to inspect or make maintenance of the other plants, even with system running.
The need of thermal insulation can be met by using K820 thermo acoustic panel in polyester fibre.
Main features
K60A is an active panel; it has 2 thermal diffusers in anodized aluminium, glued on panels in the factory. The hydraulic circuit is made by means of a plastic material pipe with anti-oxygen barrier.
Download Catalog
K60C is an active panel; it has 4 thermal diffusers in anodized aluminium, glued on panels in the factory. The hydraulic circuit is made by means of a serpentine with copper pipe.
Download Catalog

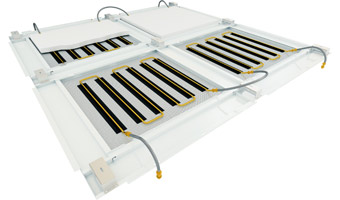

GK120 series permits making a 1200x1200mm modular false ceiling with cross structure at sight. Steel sheet panels are available in plain and micropunched versions.
The connection in series of the panels among them and to the delivery and return manifolds is made by straight or angle push fittings and plastic pipe.
Each panel has two hooks fixed in their apposite buttonholes of the carrying elements, around which the panel can rotate. Two safety springs keep the panel on seat and permit the opening and the closing. The panel can be therefore be unhooked, rotated by 90° and positioned vertically to open the false ceiling and reach the plenum to inspect or make maintenance of the other plants, even with system running.
The need of thermal insulation can be met using K820 thermo acoustic panel in polyester fibre.
Main features

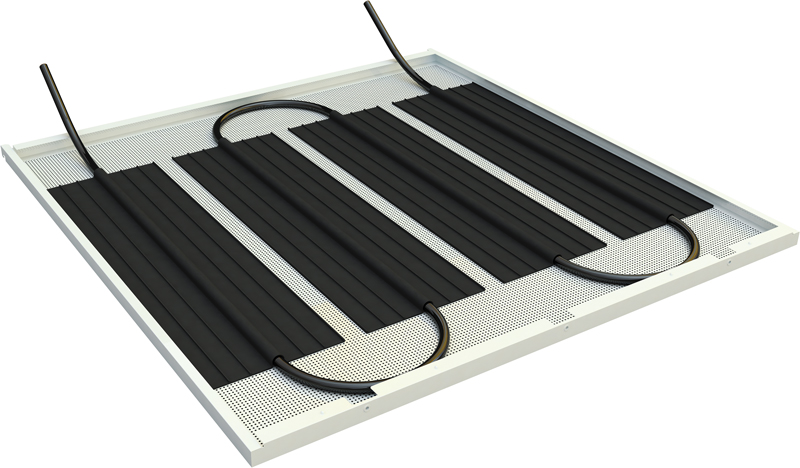

K120A is an active panel; it has 4 thermal diffusers in anodized aluminium, glued on panels in the factory. The hydraulic circuit is made by means of a plastic material pipe with anti-oxygen barrier.
Download Catalog

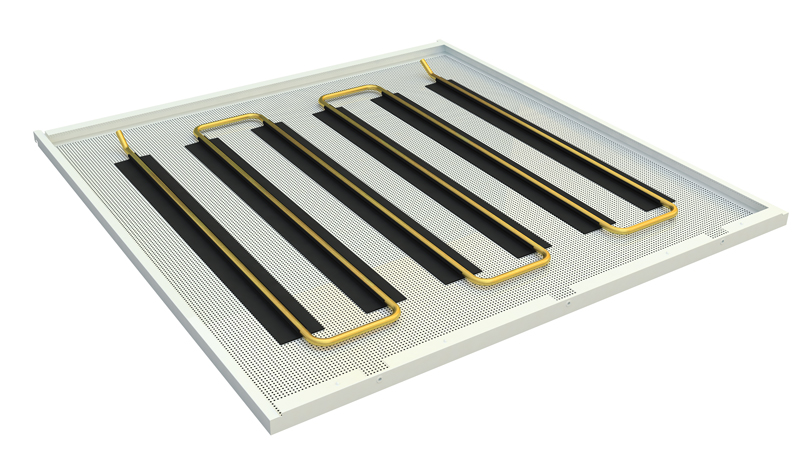

K120C is an active panel; it has 6 thermal diff users in anodized aluminium, glued on panels in the factory. The hydraulic circuit is made by means of a serpentine with copper pipe.
Download Catalog

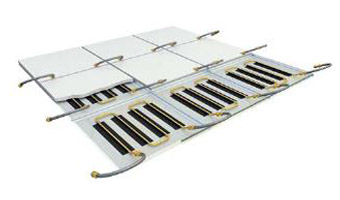

GK60x60 PSV series permits making a 600x600mm modular false ceiling for laying on T structure, base 24 mm. Steel sheet panels are available in plain and micropunched versions.
The connection in series of the panels among them and to the delivery and return manifolds is made by straight or angle push fittings and plastic pipe.
The panel is prearranged for the introduction of two PGK suspension cables that are fixed to the T carrying structure during the assembly. The panel can be therefore be unhooked and positioned vertically, by remaining hanged to the cables, to open the false ceiling and reach the plenum to inspect or make maintenance of the other plants, even with system running.
The need of thermal insulation can be met using K820 thermo acoustic panel in polyester fibre.
Main features

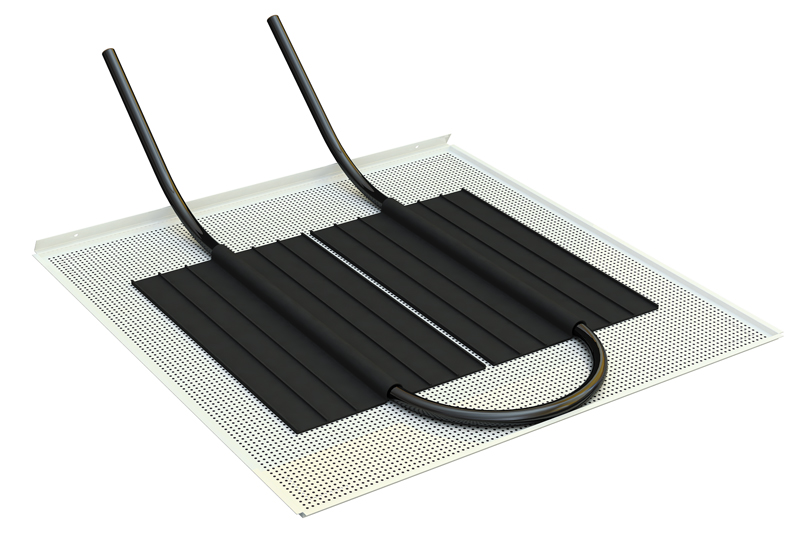

K6A is an active panel; it has 2 thermal diffusers in anodized aluminium, glued on panels in the factory. The hydraulic circuit is made by means of a plastic material pipe with anti-oxygen barrier.
Download Catalog
K6C is an active panel; it has 4 thermal diffusers in anodized aluminium, glued on panels in the factory. The hydraulic circuit is made through copper serpentine pipe.
Download Catalog

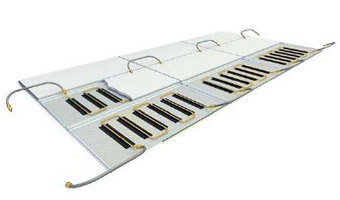

The GK60x120 PSV series permits making a modular false ceiling of 600x1200mm for laying on T shaped structure, base 24 mm. The steel sheet panels are available in the plain and the micropunched versions.
The connection in series of the panels among them and to the delivery and return manifolds is made by straight or angle push fittings and plastic pipe.
The connection in series of the panels among them and to the delivery and return manifolds is made by straight or angle push fittings and plastic pipe.
The panel is prearranged for the introduction of two PGK suspension cables that are fixed to the T carrying structure during the assembly. The K12A panel can be therefore hooked off and positioned vertically, by remaining hanged to the two cables, to open the false ceiling and reach the plenum to inspect or make maintenance of the other plants, even with system running.
The need of thermal insulation can be satisfied with the use of the K820 thermo acoustic panel in polyester fibre.
Main features
K12A panel is an active panel; it has 2 thermal diffusers in anodized aluminium, glued on panels in the factory. The hydraulic circuit is made by means of a plastic material pipe with anti-oxygen barrier.
Download Catalog

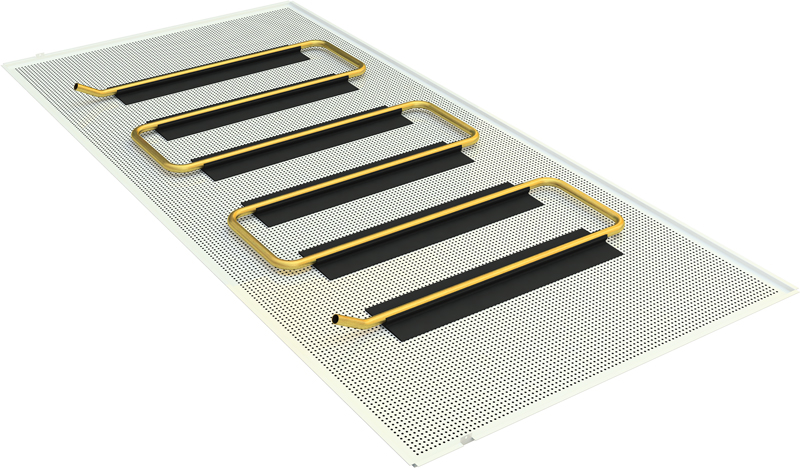

K12C panel is an active panel; it has 6 thermal diffusers in anodized aluminium, glued on panels in the factory. The hydraulic circuit is made through copper serpentine.
